Product details
1. The RYQ - 3 (10) introduced A

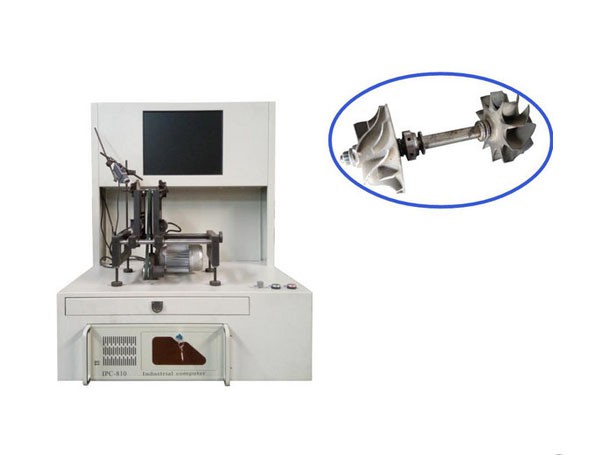

Ryq-3 (10)A is A horizontal double-sided dynamic balancing machine with soft support driven by ring belt. Suitable for balancing supercharger rotor and micro motor rotor
2. Measurement system
Industrial control computer, 19 "LCD display (can be customized with touch screen), Windows operating platform
★ with the company's independent development of balance measurement system. General software functions cover all the functions of the domestic mainstream balancing machine software, the operation of all the use of Chinese menu structure, operating steps text prompt; Special software includes: all kinds of automatic balancing machine software, software with Angle function, software with automatic positioning function, transmission shaft multi-axis joint school software
★ measuring system performance is strong: arbitrary workpiece calibration, measuring speed range wide 80 RPM starting, measuring speed block, unbalance amplitude and phase stability, high deweighting rate and separation ratio, high sensitivity
★ software with allowable unbalance calculator, the operator only needs to input the allowable vibration of the workpiece precision level, mass, working speed, and radius click to calculate the number of grams to allow the remaining unbalance of the workpiece
★ software completely independent development, according to customer requirements to modify or add software functions (such as scanning the two-dimensional code to add the workpiece identity name to the measurement results to save for future quality investigation)
Note: please contact us for more information about the equipment
Manufacturer standard configuration parameters
Equipment model ryq-3a ryq-10a
The workpiece quality range is kg 0.1-3 0.3-10
The maximum diameter of the workpiece is mm 350 350
Spacing between two supports mm 30-450 30-450
The diameter range of the belt dragging is mm ≤150 ≤150
Support shaft diameter mm 4-17 4-17
Balance speed r/min when the drag is 50mm in diameter, 400-3000 when the drag is 50mm in diameter, 400-3000
Minimum residual unbalance ≤0.5 GMM /kg ≤0.5 GMM /kg
Unbalance reduction rate % ≥90% ≥90%
Measuring time 10S (related to measuring speed and setting period)
Motor power 0.09kw 0.18kw
Frequency conversion speed regulation frequency conversion speed regulation
Transmission mode ring belt ring belt
Single-phase AC 220V, 50/60hz single-phase AC 220V, 50/60hz
★ the above is the factory's standard configuration equipment parameters, we support the product, system according to the customer's demand on the length of the equipment, the roller support workpiece shaft diameter range to do equipment structure allows reasonable changes
★ equipment can be added without affecting the measurement of performance of reasonable accessories, such as protection
